Victron Energy Solar Charge Controllers

Introduction

Victron Energy offers a comprehensive range of solar charge controllers designed to optimize the efficiency of solar energy systems, particularly in Sprinter van and Transit van setups. With advanced MPPT technology, these controllers ensure maximum power harvest and efficiency, making them the perfect choice for solar energy needs in mobile applications.

Features

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Bluetooth Smart built-in for wireless setup and monitoring
• VE.Direct port for data connection to various devices
• Load output to prevent over-discharge of the battery
• Battery Life intelligent battery management
• Programmable battery charge algorithm
• Day/night timing and light dimming options
• Internal temperature sensor
• Optional external battery voltage and temperature sensing via Bluetooth
• Fully discharged battery recovery function

How to Choose Your Controller

1. Calculate Your Load: Determine the total wattage of your solar panels. Use the MPPT Calculator to help calculate your load requirements.

2. Select the Controller Size: Choose a model that can handle the voltage and current requirements of your solar array and battery bank.

In Victron's MPPT model names, for example, MPPT 75/50, the first number (75) is the maximum PV open circuit voltage. The second number (50) is the maximum charge current. This naming convention helps easily identify the capabilities of each model:

Understanding the numbers:

• Maximum PV Open Circuit Voltage (V): The highest voltage that the solar panels can deliver to the controller. Ensure the panel's open-circuit voltage does not exceed this value. To calculate this, add up the open-circuit voltages (Voc) of the solar panels if they are connected in series.
• Maximum Charge Current (A): The highest current that the controller can send to the batteries. Ensure the panel's short-circuit current (Isc) is within this limit. To calculate this, add up the short-circuit currents of the solar panels if they are connected in parallel.
• Wattage (W): The total power the controller can manage. Calculate the total panel wattage and ensure it is within the controller's capacity. For example, if there are four 185W panels, the total wattage is 740W.

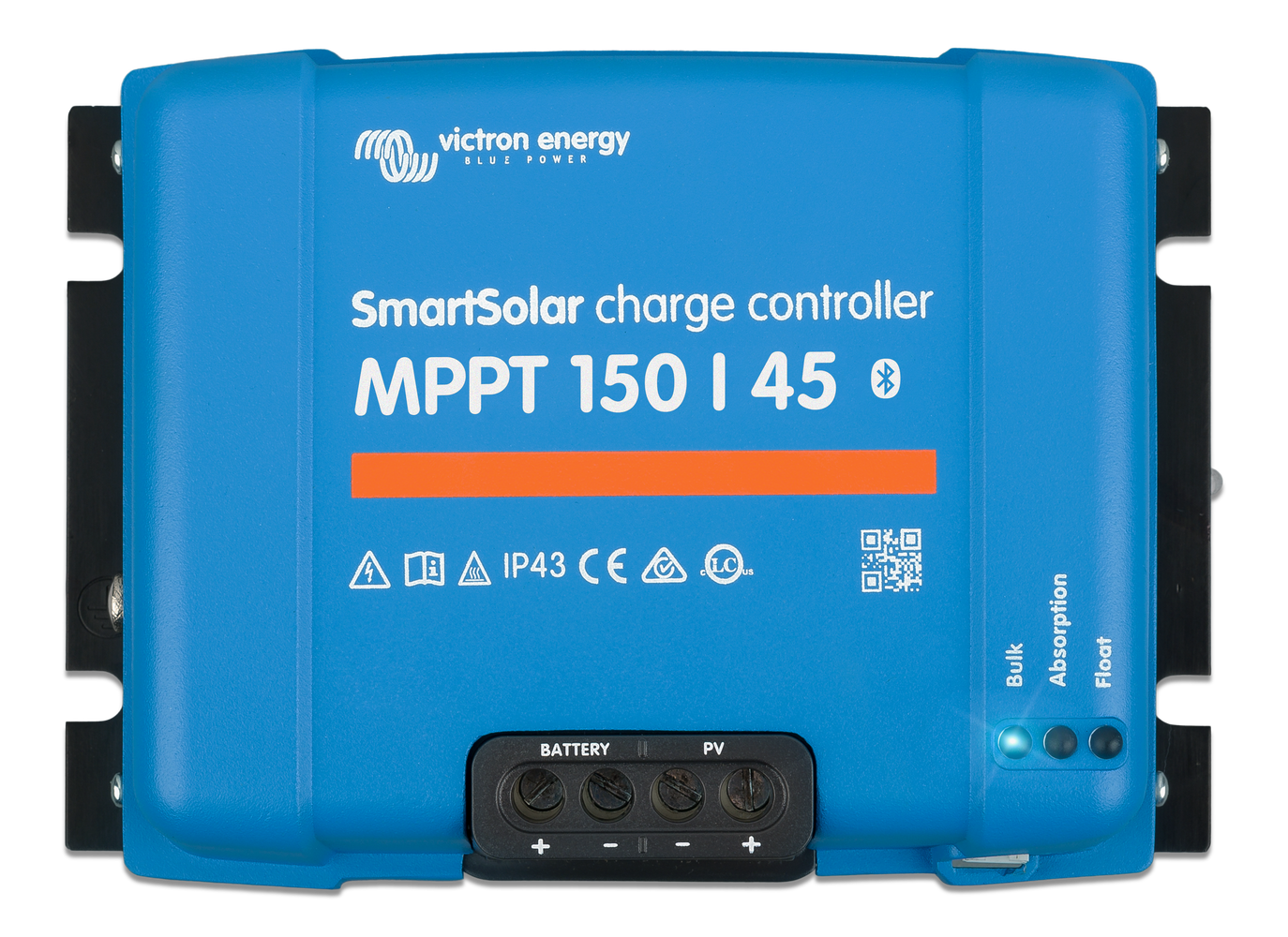

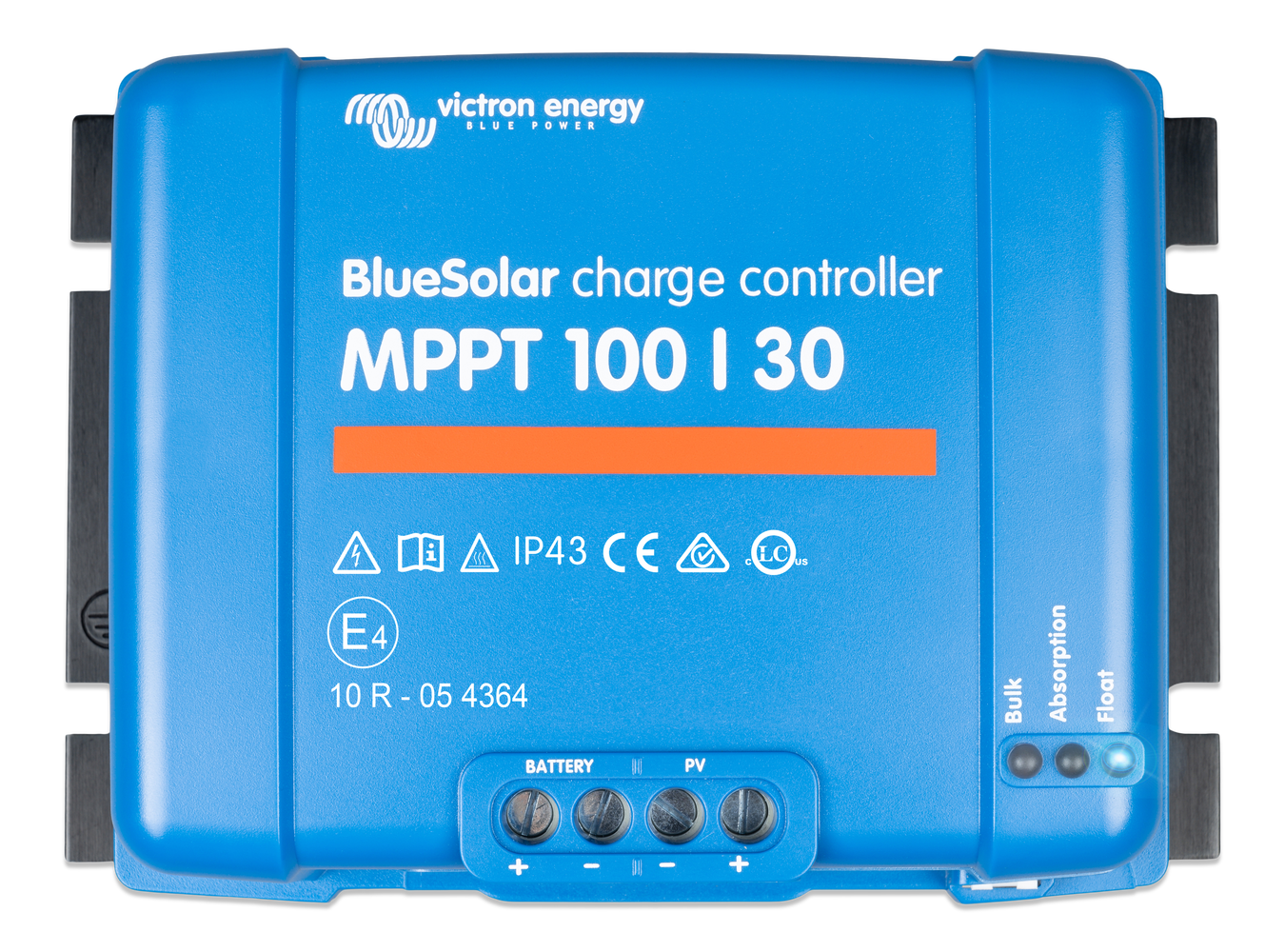

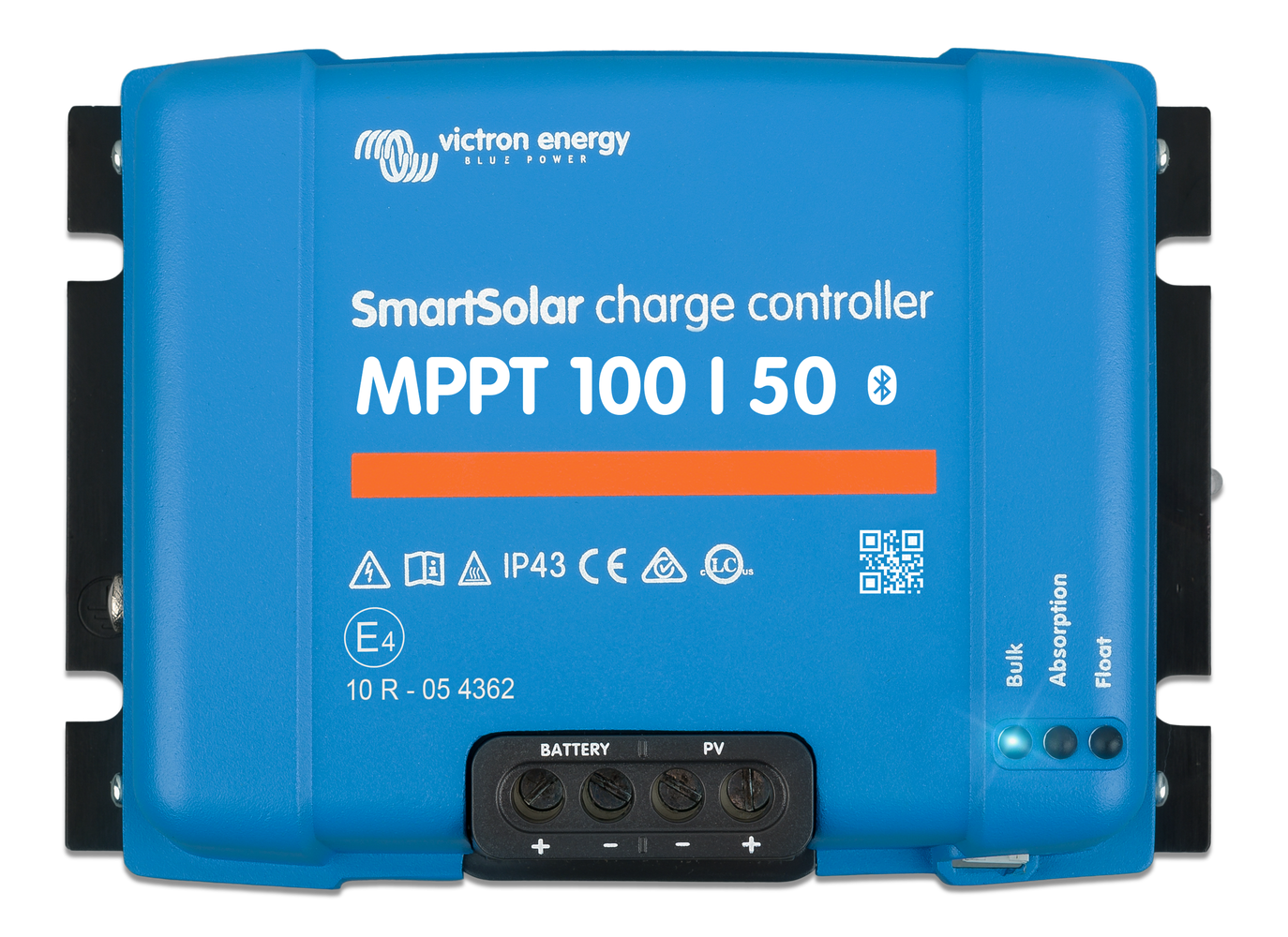

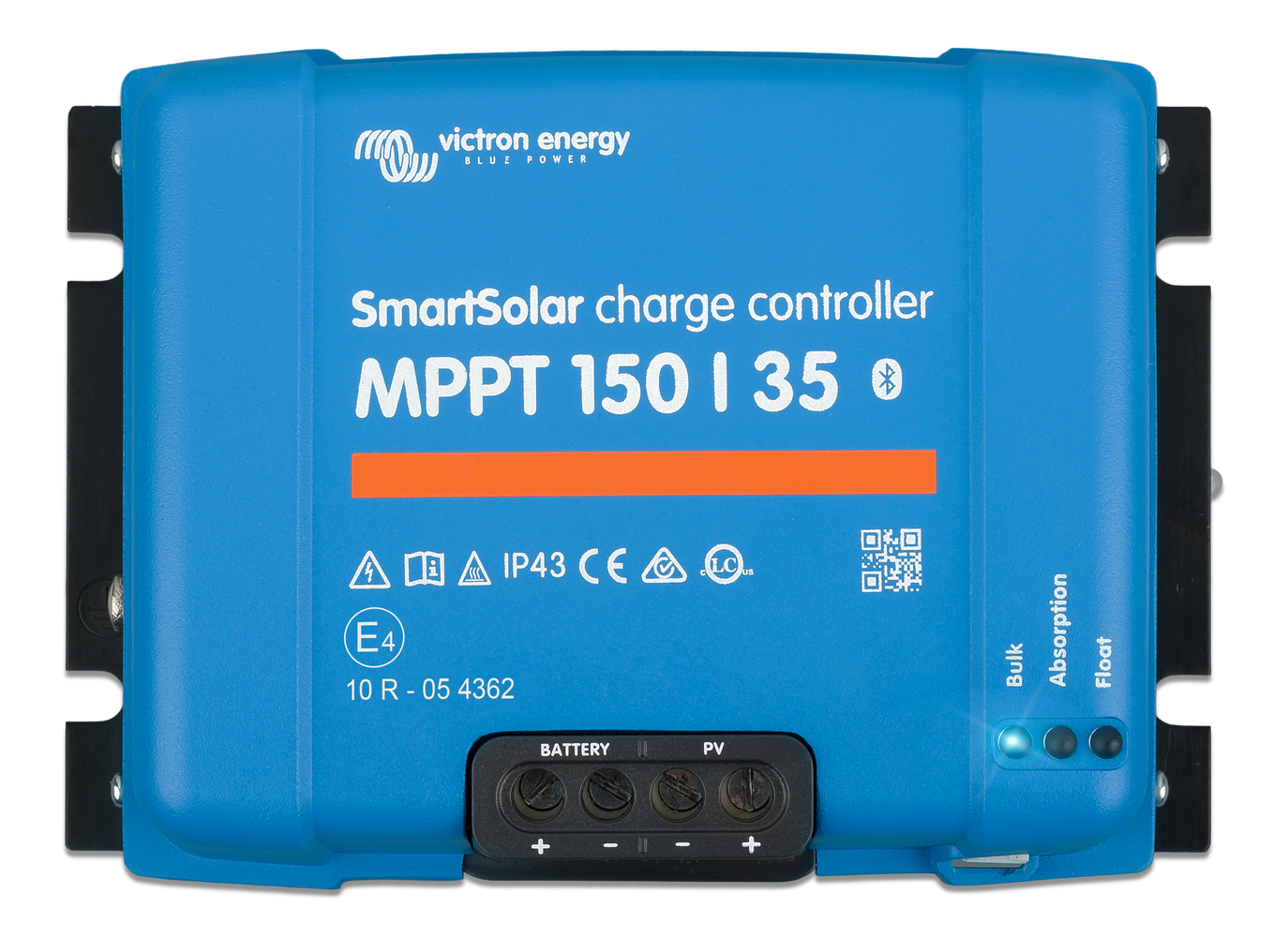

The 100V and 150V series are the perfect size for Sprinter van and Transit van solar panel array systems, providing the necessary capacity and efficiency for mobile solar energy setups.

Learn More

For more details on the range of solar charge controllers, visit the official Victron Energy Solar Charge Controllers page.
